Usage manual

Main


Setup guide

  1. Clone the repository with the following command:
     git clone https://github.com/opendemobank/web-client.git

  2. Run the following commands in git bash, in order to update npm and install react-scripts with it:
     npm install -g npm@latest
     npm install react-scripts --save

  3. You can login at http://localhost:3000/ with the following credentials:

    email: admin@opendemobank.com

    password: admin


Usage

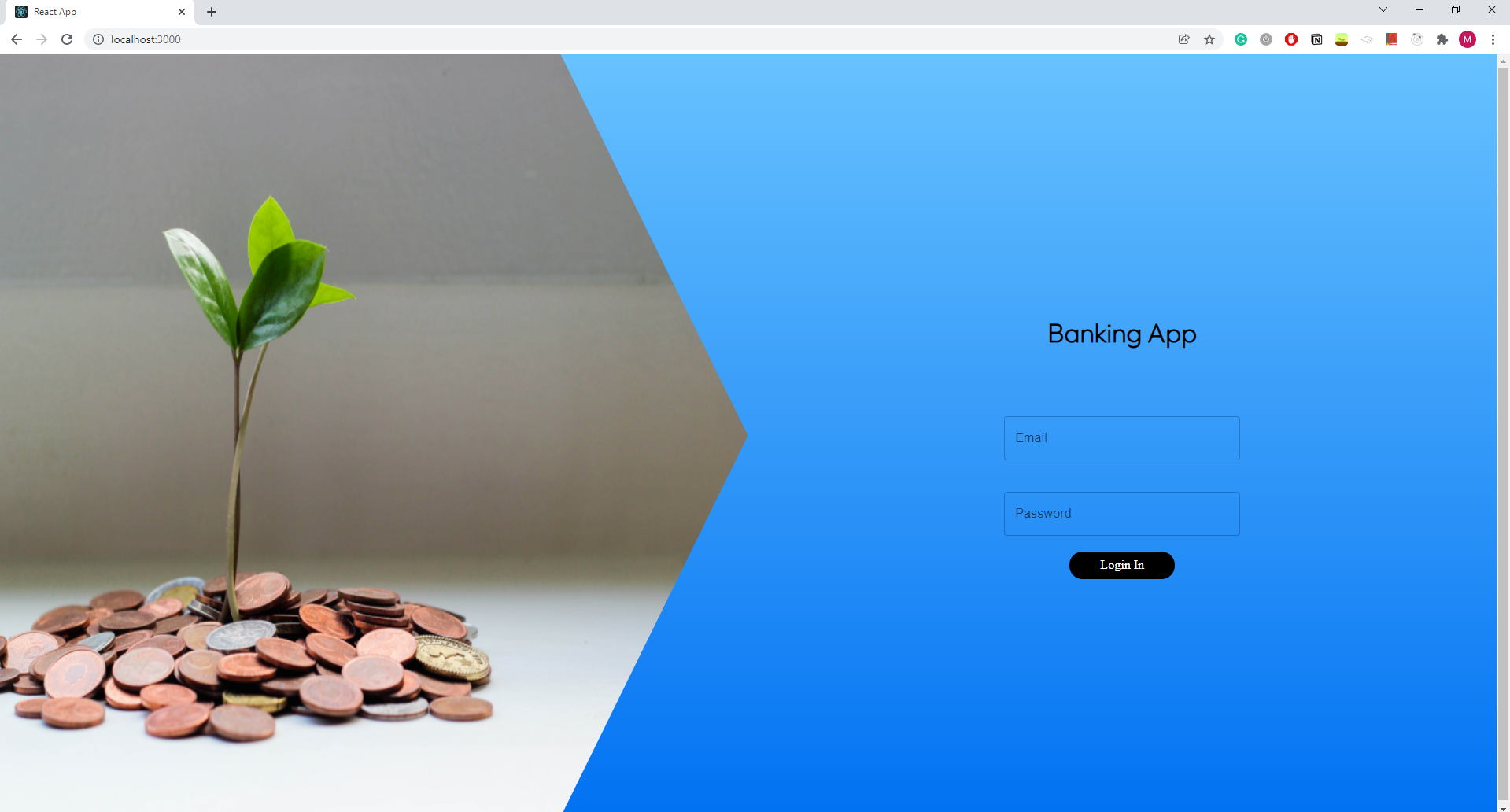

Login page

The login page is located at http://localhost:3000/. To continue, logging in is necessary.

email: admin@opendemobank.com

password: admin

Account overview

After logging in, the admin is directed to the admin panel.

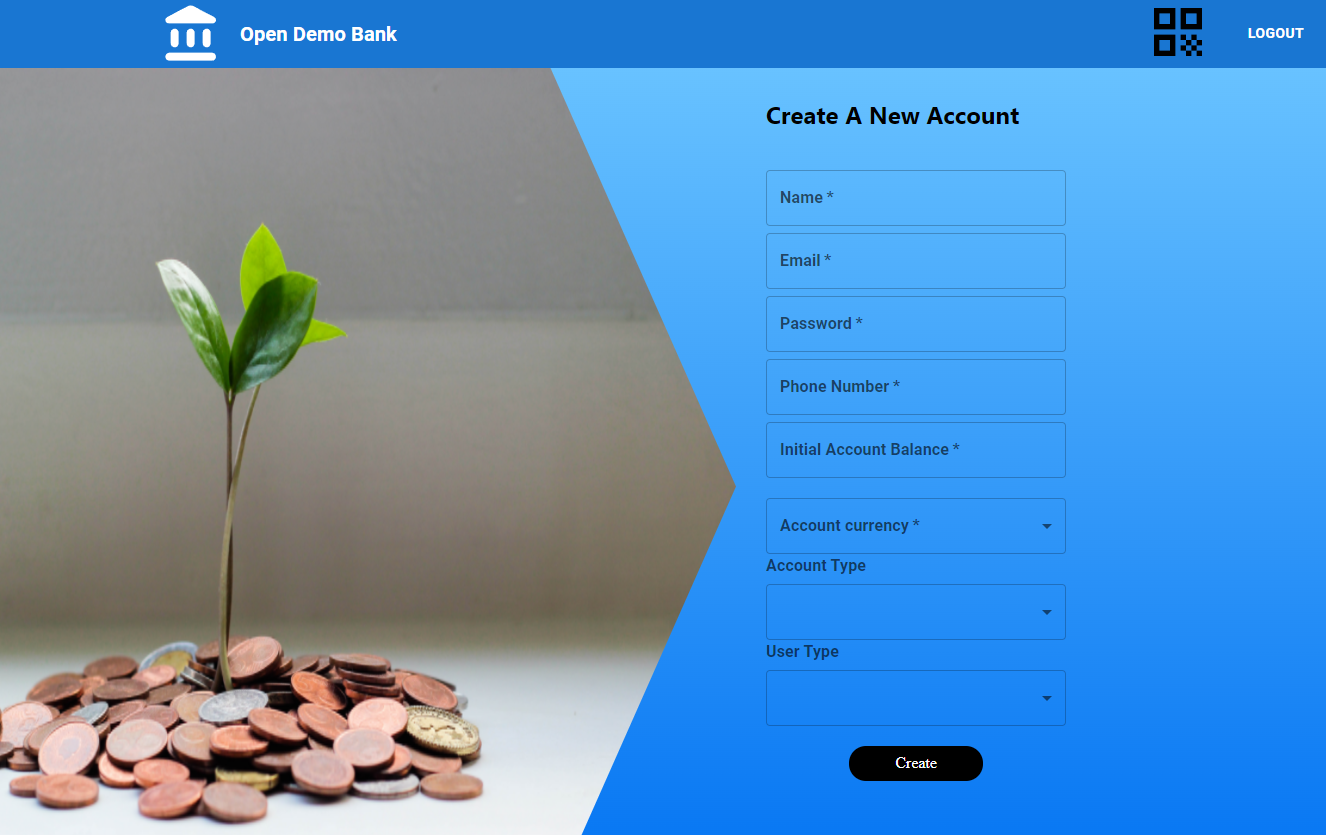

If the admin clicks on ‘create new account’, he is redirected to a new customer form.

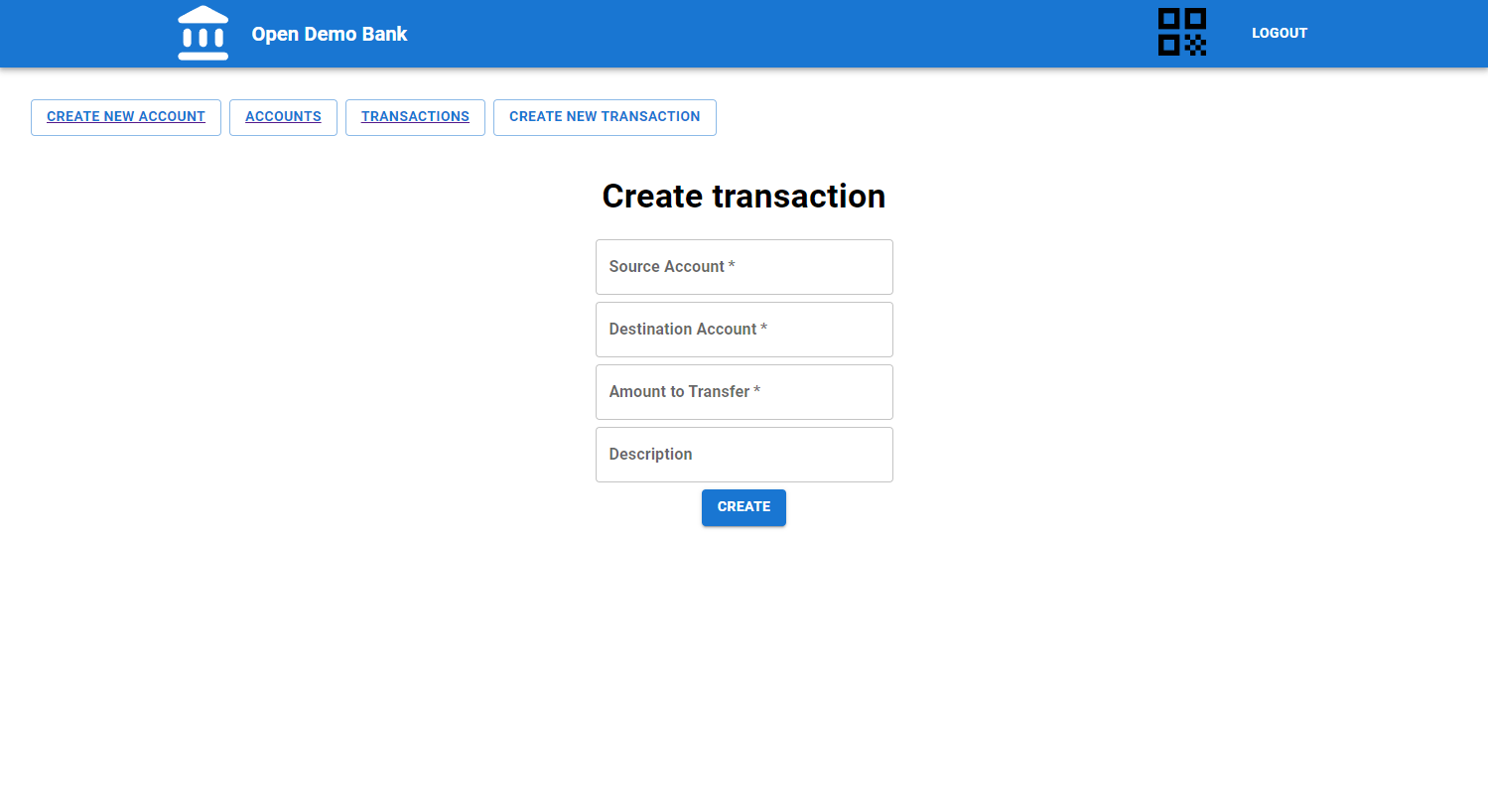

If the admin clicks on ‘create new transaction’, he is redirected to a new transaction form.

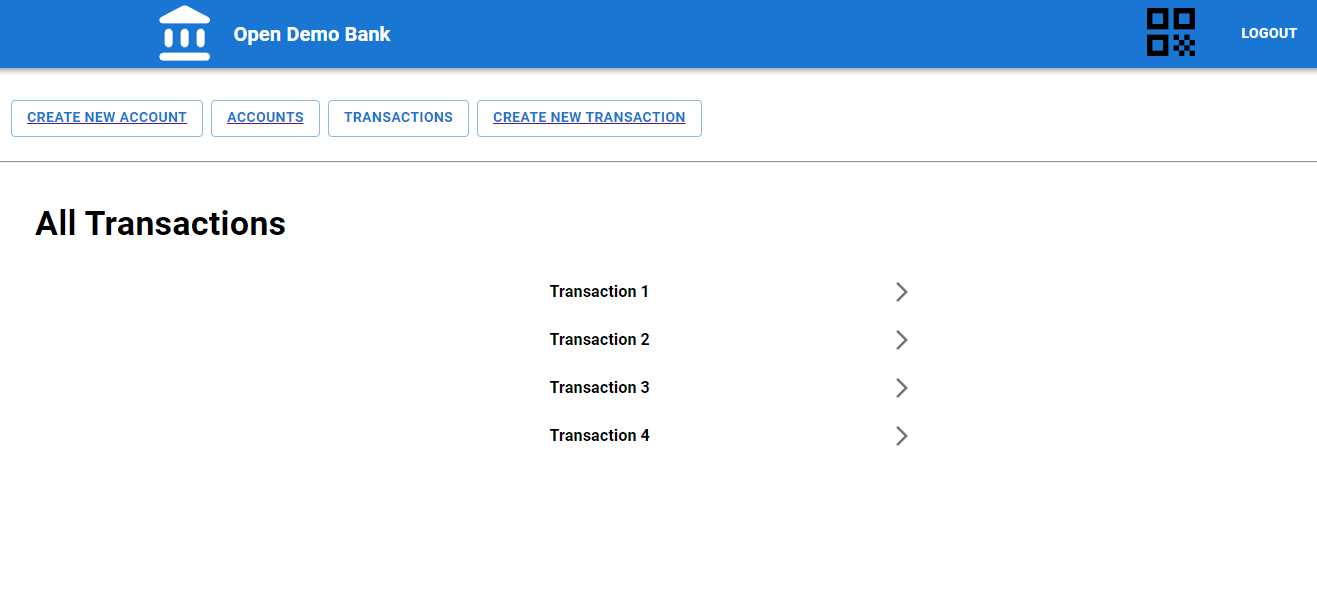

If the admin clicks on ‘transactions’, he is redirected to the transaction overview page.

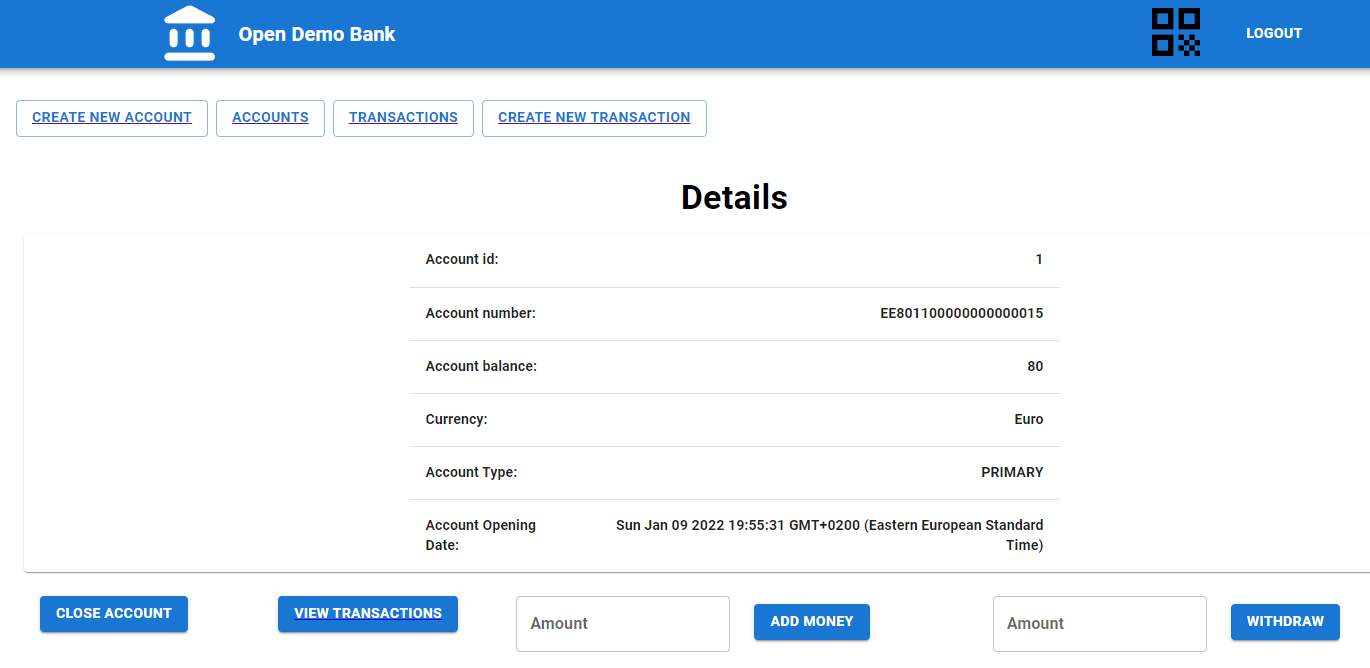

If the admin clicks on ‘Account IBAN : EE801100000000000015’, he is redirected to the detailed account information.

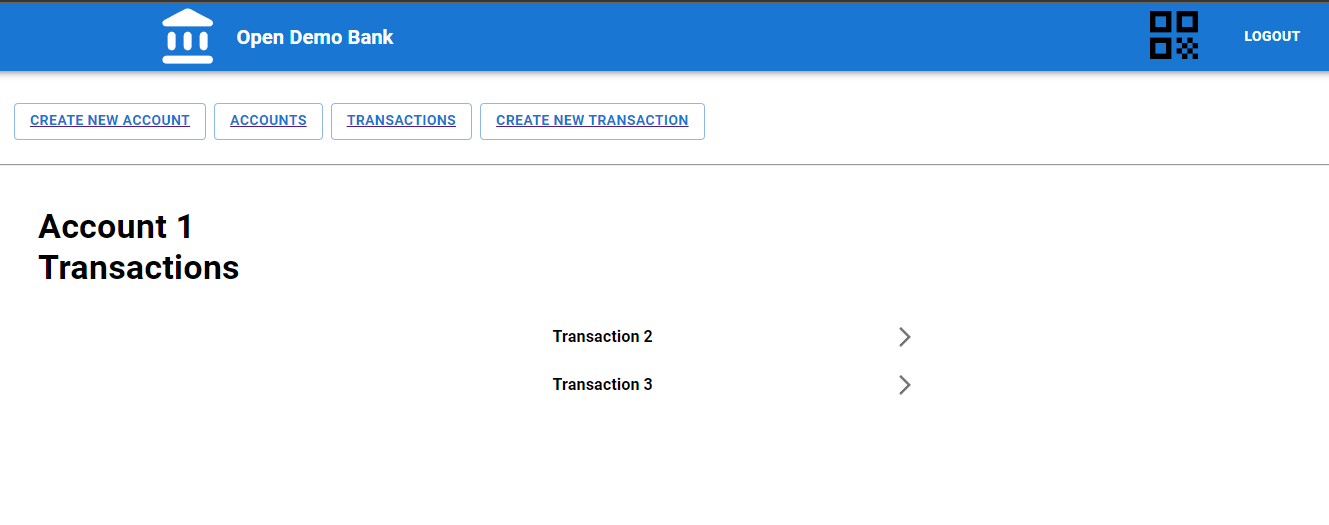

If the admin now clicks on ‘view transactions’, he will see this account’s transactions.

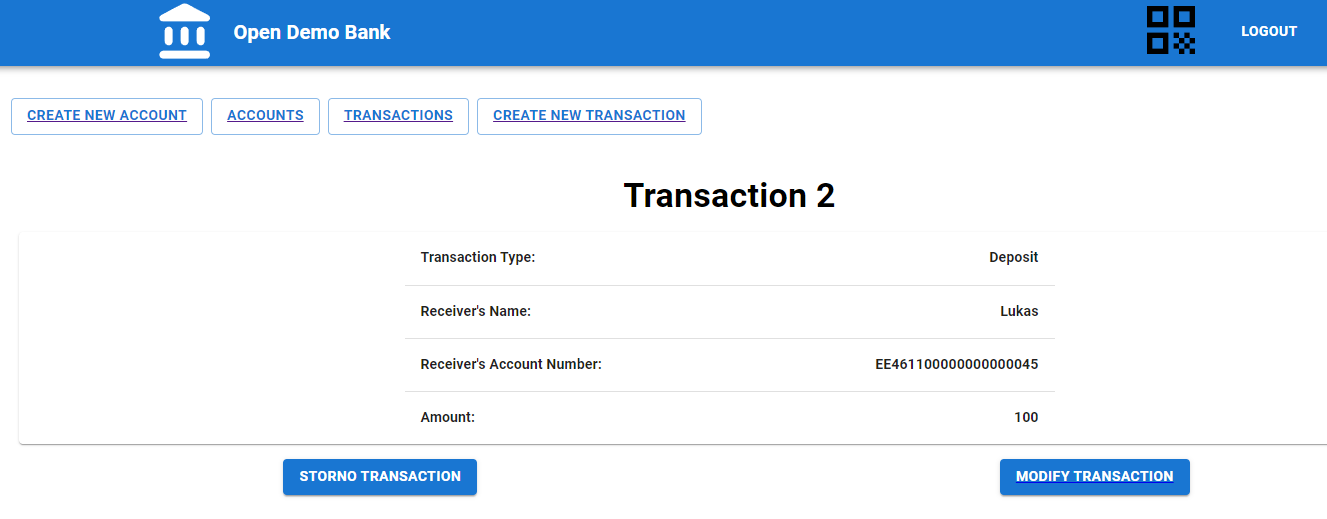

When clicking on a specific transaction, the user will see detailed information about this transaction.
